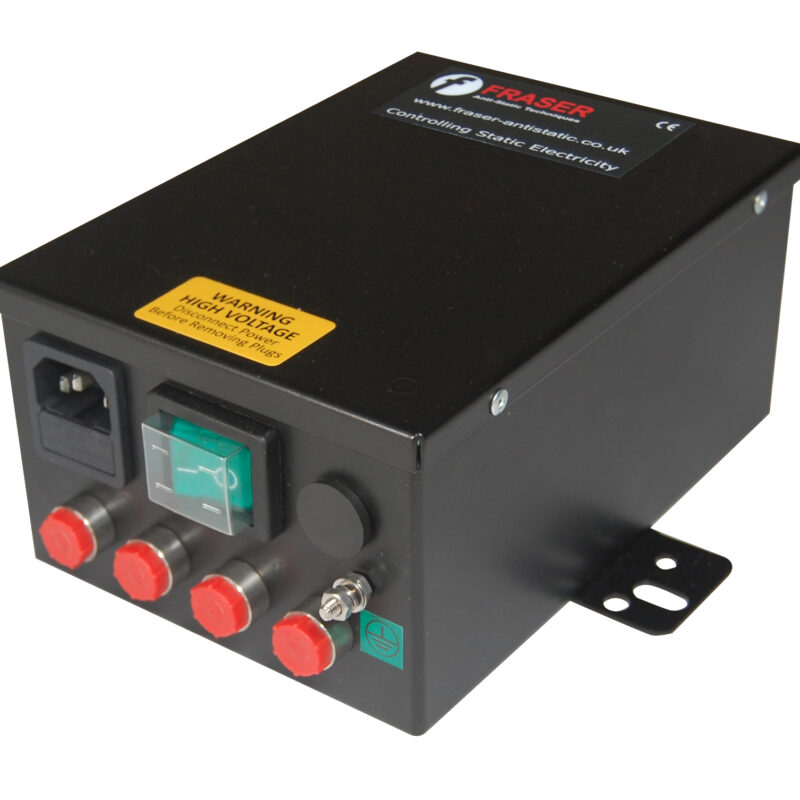

The EXHP is part of Fraser’s comprehensive family of advanced power units which provide the high voltage required to produce ionisation in our range of AC static eliminators.

The EXHP is designed to serve up to four Fraser ATEX certified EX-1250 Static Eliminators which are used in coating, gravure, printing, laminating and similar hazardous areas.

• Conforming to the highest market standards, the EXHP provides 6 kV of ionising power
• The flat-wave high voltage output combines high performance with low electrical stress for long term reliability
• Low running costs (typically 30 W)
• Exceeds international safety requirements with fully encapsulated windings, current-limited design and automatic shut-down if there is a short on the static eliminator

For ease of connectivity and control, the EXHP has a local on/off switch and can be powered directly by machine electrics.  A Fraser HP Connector allows for swift connection or disconnection. A 2m IEC lead is supplied.

Made easy by its large combined load capacity of 30 m, the EXHP Power Unit must be positioned outside of the hazardous area.

Options

• Remote monitoring of operational condition/alarm
• An LED can be fitted to show that high voltage is functioning
