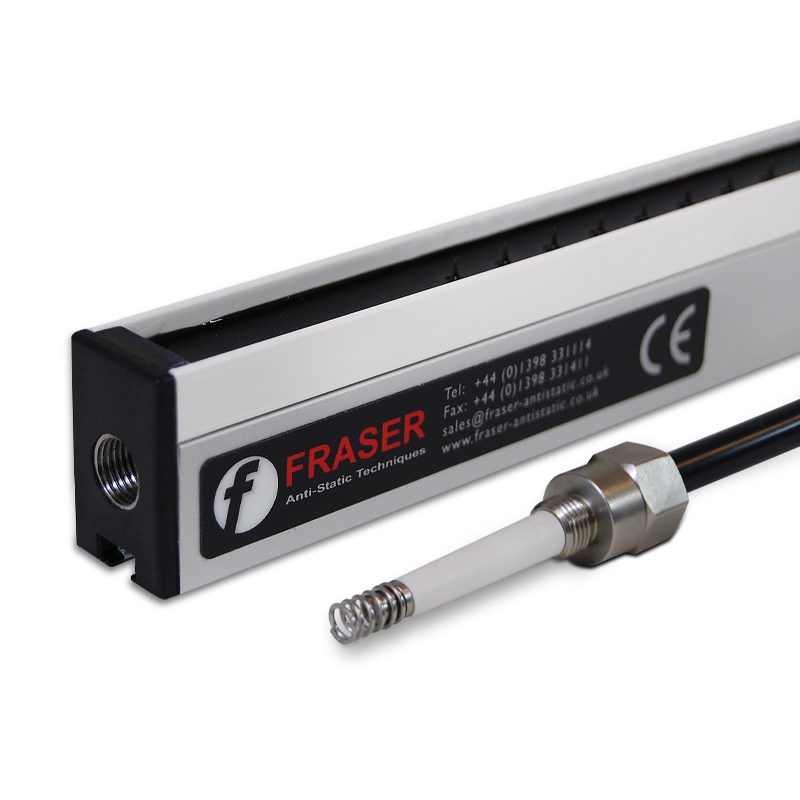

The 1255 Static Eliminator is designed for applications where there is a need for a detachable HT cable.  Typically, the cable may be a wear part that will require replacing when damaged.

• Shockless stay-sharp emitters at 10 mm pitch guarantee long-term performance
• All live parts are epoxy encapsulated for protection, giving a long and reliable life
• Robust construction, with adjustable mounting studs for ease of installation
• Operating distance 20 – 150 mm from material, best performance within 50 mm
• Use with Fraser 5.5 – 6 kV HP50 Power Units, with optional remote status monitoring
• The high voltage from the power unit must be switched off before the cable is detached

The 1255 Static Eliminator is suitable for most industrial processes, including many robot arm applications, throughout the plastics, packaging, converting and related industries.

Note: The 1255 is not covered by the UL certification of the 1250-S Static Eliminator.

Options

• Fixed mounting studs
• Bars joined in series
• Airboost – see 1250 Air Bar Datasheet
