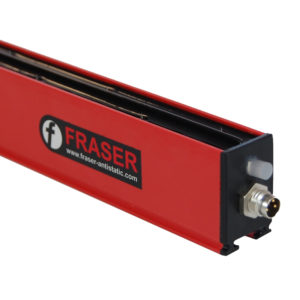

The 3014 introduces new standards in performance and size in a 24 V DC static eliminator.  Using a unique field overlap technology, and with fully encapsulated built-in electronics, the 3014 Static Eliminator offers market leading performance in a very compact bar.

• Operating distance 20 – 150 mm
• 20 mm emitter pitch for intense ionisation
• Tungsten emitters guarantee an unlimited life, resistively coupled for shockless operation
• 24 V DC operation, 7.5 kV ionising power supply integrated into bar
• LED indication of operational status of bar and whether it needs cleaning
• Duplicate remote signals for PLC or to power external lamps, relays
• Remote on/off switching

Originally designed as a high technology replacement for traditional short range AC anti-static bars, the 3014 Static Eliminator is used throughout industry.

Options

• 100 – 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU)
• Air Knife mounted – see 5000/5100 and 5500
• Air Bar mounted
