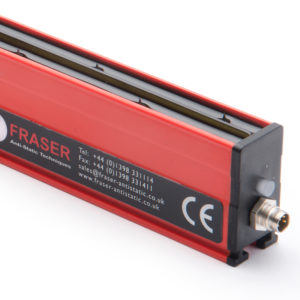

The 3024F is the ultimate static eliminator for machinery manufacturers: compact, with built-in electronics, 24 V DC supply and very powerful performance. Tested at speeds up to 1300 m/min, the 3024F Static Eliminator provides short range static neutralisation to meet the requirements of high performance machinery.
- Operating distance 25 – 150 mm
- 25 mm emitter pitch for intense ionisation
- Tungsten emitters guarantee an unlimited life, resistively coupled for shockless operation
- No dead zone: active ionisation length equals physical length of the bar
- 24 V DC operation, with 11 kV ionising power integrated into bar
- LED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relays
- Remote on/off switching
The 3024F Static Eliminator is specified by hundreds of OEMs and used by manufacturers in countless industries worldwide.
For longer range applications from 100 – 500 mm with changing geometry, see the 3024L Static Eliminator.
Options
- 100 – 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU)
