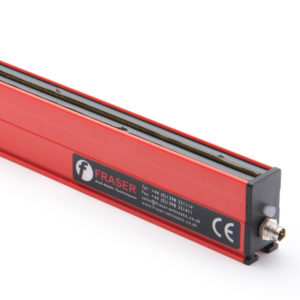

The 3024L is the ultimate static eliminator for machinery manufacturers: compact, with built-in fully-encapsulated electronics, 24 V DC supply and very powerful performance. Ideal for applications with changing geometry, the 3024L Static Eliminator provides medium range static neutralisation to meet the requirements of high performance machinery.
- Operating distance 100 – 500 mm
- 50 mm emitter pitch for extended range
- Shockless, resistively coupled tungsten emitters for unlimited life
- 100 % coverage: active length = overall length of the bar
- 24 V DC operation, with 11 kV ionising power integrated into bar
- LED indication of operational status of bar, with duplicate remote signals for PLC or to power external lamps, relays
- Remote on/off switching
The 3024L Static Eliminator is specified by hundreds of OEMs and used by manufacturers in countless industries worldwide.
For shorter range applications from 25 – 150 mm, and ideal for fast-moving materials, see the 3024F Static Eliminator.
Options
- 100 – 250 V AC-DC 24 V Power Supply (Part No: E3024-PSU)
