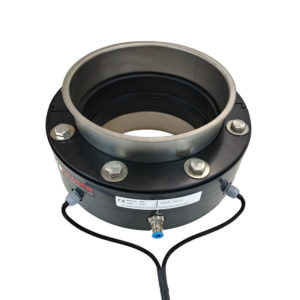

The 3024 DC Ring Ioniser is a compact in-line static eliminator to neutralise charged material in pneumatic transport systems and is widely used in polymer feeding and mixing processes.

The novel integration of high voltage DC ionisation with air assistance provides the most powerful static neutralisation to avoid static induced blockages and product misbehaviour at corners, in pipework, air separators, cyclones and discharge areas.

• DC ionisation separates polarities to provide ions with a longer and more effective life in eliminating static charge
• Air assistance blows the ions into the centre of the pipework for optimal product neutralisation
• 11 kV of ionising power delivered by external 24 V DC power unit (included with Ring Ioniser)
• Available in 3 versions: 150 mm, 200 mm or 250 mm flange coupling for installation with standard Jacob tubing

 Options

• 10 m cable + M8 3-pin connector (Part No. 81588).
• 90 – 250 V AC Power Supply (Part No. E31101).
